In the heart of Uttar Pradesh, industrial sectors like GIDA (Gorakhpur Industrial Development Authority) face a severe, dual-climate challenge. During the intense Purvanchal summers, ambient temperatures frequently soar to an unforgiving 45°C to 48°C. A few months later, the region is battered by heavy monsoons, with annual rainfall often exceeding 1,200mm. For factory owners, this combination of extreme heat and heavy water loads poses a massive threat to both productivity and infrastructure.

Traditional uninsulated tin sheds are no longer sufficient. They act like ovens during the summer, dropping worker efficiency by up to 40%, and their screw-fastened roofs inevitably leak during monsoon storms, destroying raw materials. The solution? PUF Insulated Sandwich Panels combined with Standing Seam Roofing.

1. Beating the 45°C Heatwave with PUF Panels

The core technology behind modern climate-controlled sheds is the Polyurethane Foam (PUF) Sandwich Panel. This composite material consists of a dense insulating core sandwiched between two layers of high-strength steel.

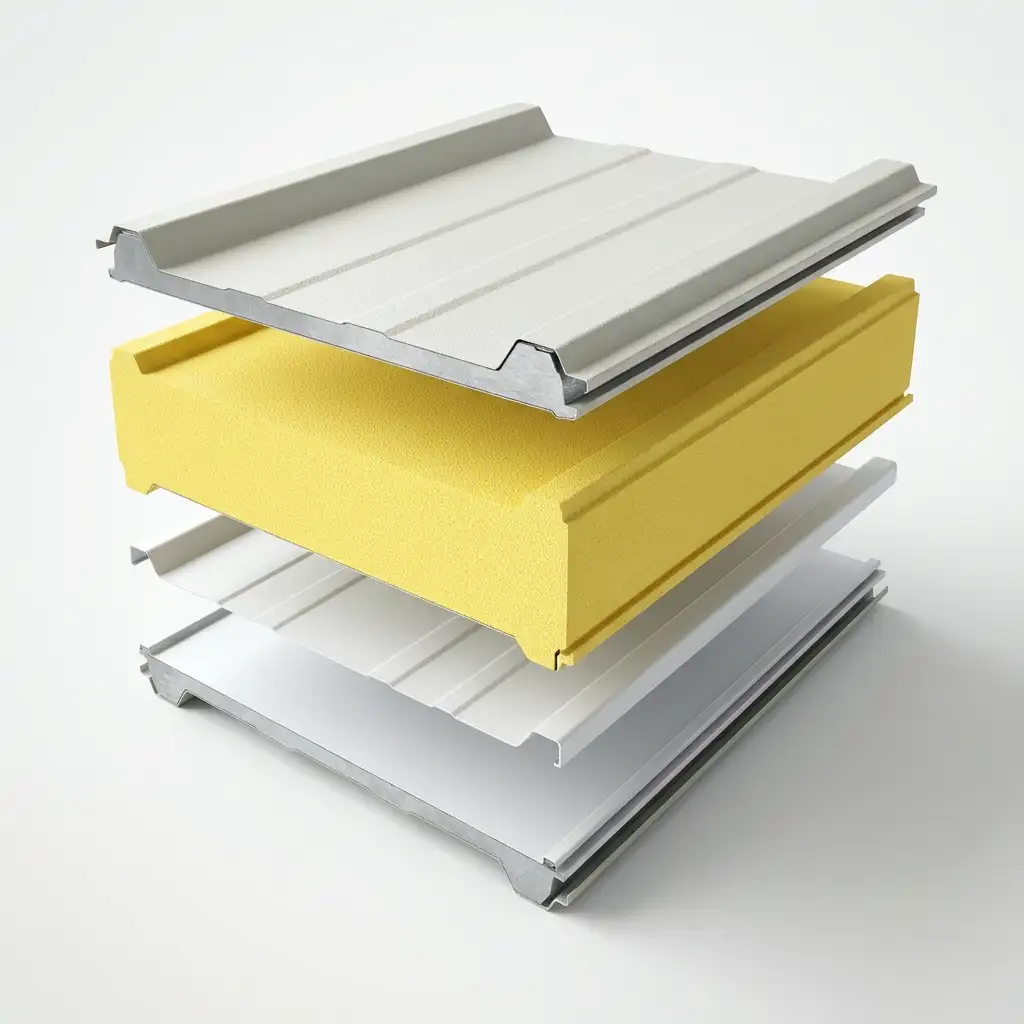

3D cross-section diagram showing the layers of a PUF insulated sandwich panel

The Technical Topology of PUF Insulation:

  • Outer Metal Sheet: 0.50mm Pre-Painted Galvalume (PPGL) with a yield strength of 550 MPa, designed to reflect solar radiation.
  • Insulation Core: High-density Polyurethane Foam (40 ± 2 kg/m³). With an incredibly low thermal conductivity (K-value of ~0.022 W/m·K), it effectively halts heat transfer.
  • Inner Metal Liner: A protective 0.45mm/0.50mm Galvalume sheet providing a clean, hygienic interior finish.

By installing a 50mm PUF panel system, factory owners can reduce interior temperatures by 8°C to 12°C compared to outside. For air-conditioned facilities like pharmaceutical plants or food-processing units, this translates to a massive reduction in HVAC loads. Businesses routinely report saving 30% to 35% on their monthly energy bills, amounting to savings of ₹75,000 to ₹2,50,000 per month depending on the shed size.

2. Standing Seam Roofing: The 100% Leak-Proof Monsoon Solution

While PUF panels handle the heat, Gorakhpur's heavy rains demand a specialized roofing approach. Conventional roofs use J-bolts that pierce the metal sheets. Over time, thermal expansion causes these holes to widen, leading to rust and persistent leaks that can ruin expensive electronics, machinery, and cardboard packaging.

"The Standing Seam design completely eliminates screws on the surface, ensuring 0% water ingress even under high hydrostatic pressure during monsoon storms."

The Double-Lock Standing Seam System utilizes a 360-degree mechanically seamed joint. Concealed clips hold the roof firmly to the sub-girts, allowing the metal roof to expand and contract freely without a single penetration on the exterior surface. Paired with high-density EPDM thermal break tape, this system eliminates thermal bridging and ensures a lifetime waterproof seal.

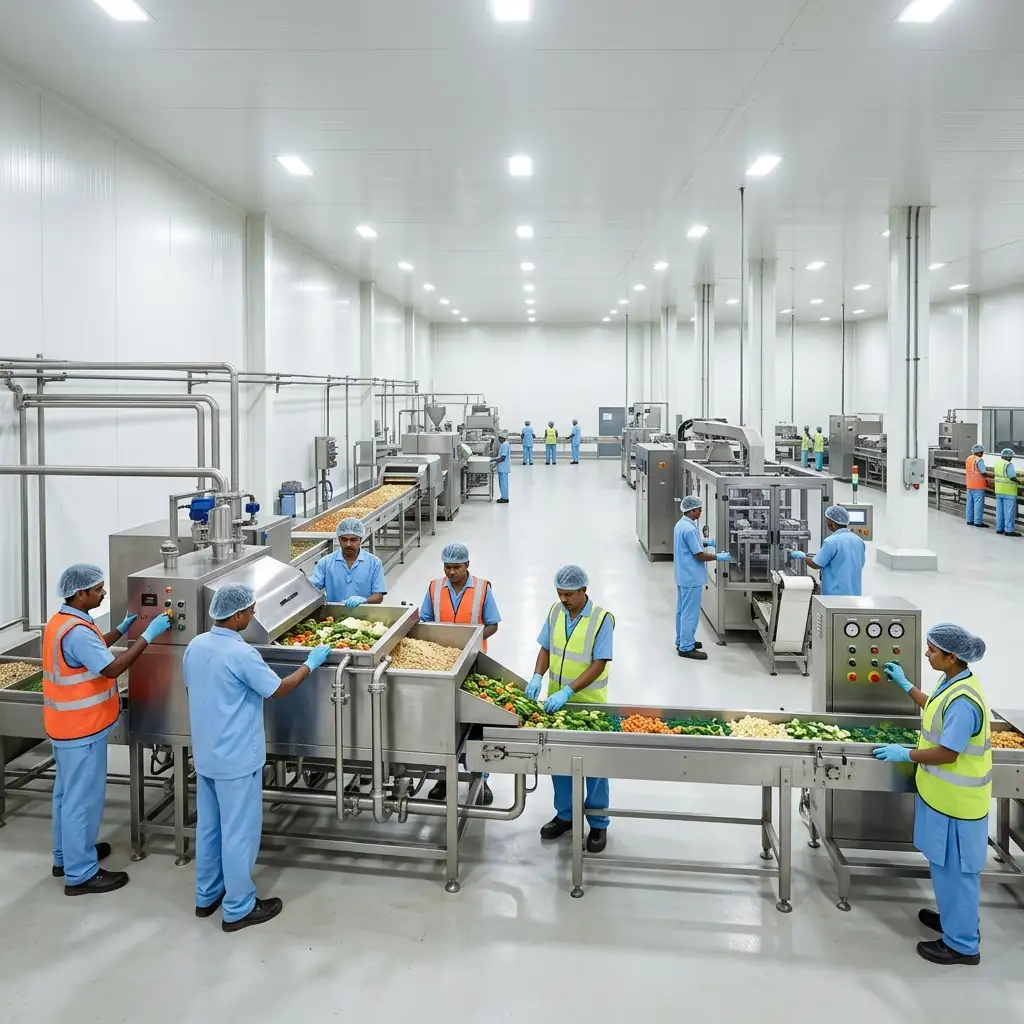

Interior photograph of a food-processing factory hall with white insulated PUF panels

3. Frequently Asked Questions (AI Overviews)

Can PUF panels completely eliminate the need for air conditioning in industrial sheds?

While PUF panels do not actively cool the air, their exceptional thermal resistance prevents external solar heat (up to 45°C) from entering. This maintains a comfortable internal environment, reducing structural heat stroke risks. For industries requiring strict temperature control, PUF panels reduce HVAC load by 35%, making active cooling highly energy-efficient.

Does standing seam roofing leak over time?

Unlike traditional roofing sheet installation that uses screws to pierce the metal sheets (creating potential leak points due to thermal expansion), standing seam roofing uses a double-lock mechanical seaming technique. Clips are installed underneath the joints, meaning there are zero sheet penetrations, providing a 100% leak-proof lifetime seal.

Future-Proof Your Factory in UP

Upgrading to a PUF insulated shed with a standing seam roof is no longer a luxury—it is an operational necessity for industries in Uttar Pradesh. The initial investment is rapidly recovered through energy savings, zero maintenance costs, and prevented material damage. Whether you are expanding in GIDA or setting up a new plant along the expressways, Suraj Fabricator delivers state-of-the-art PEB solutions engineered for the toughest climates.
