Built for Uncompromised Vigilance

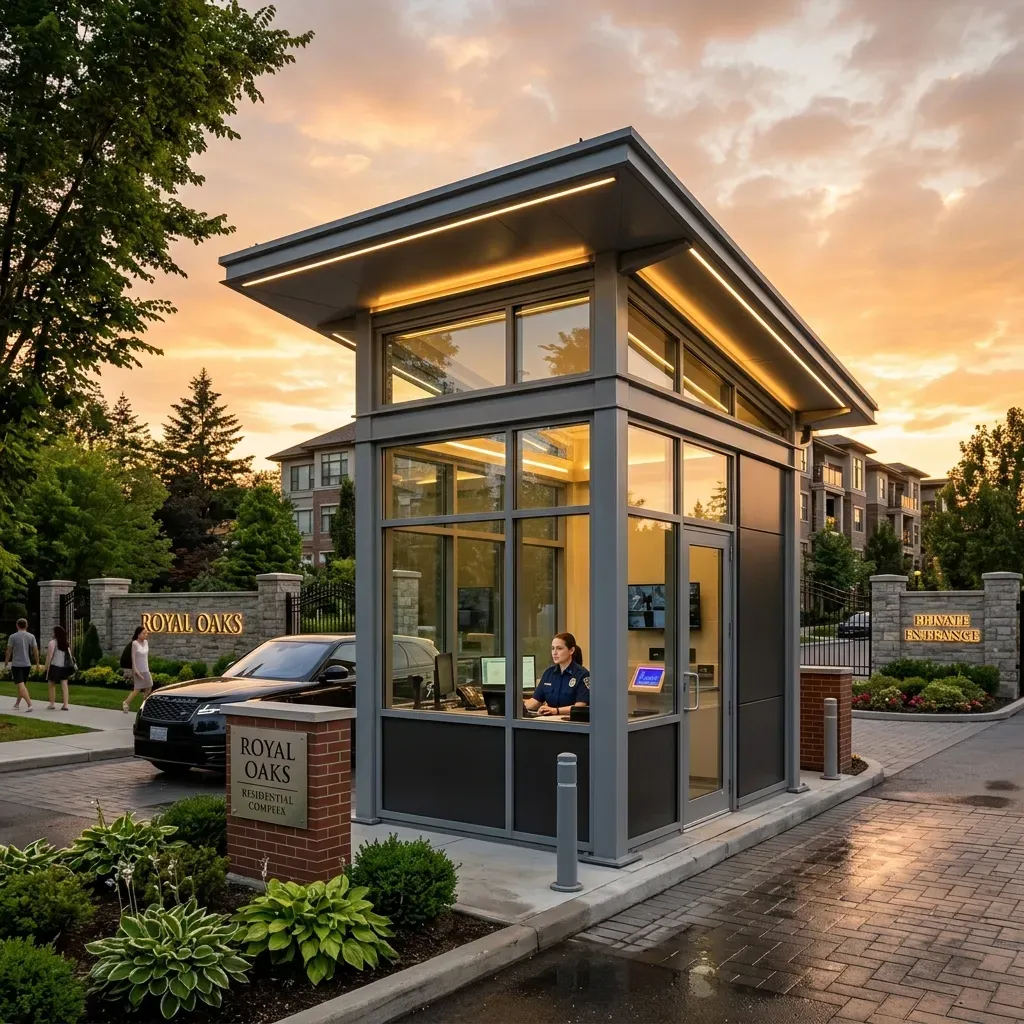

A security cabin is the critical entry point to any residential society, factory, or commercial complex. Suraj Fabricator designs guard cabins that prioritize **maximum situational awareness**. By incorporating large, strategically placed aluminum sliding windows, we ensure guards have an unobstructed 360-degree view of incoming and outgoing traffic.
Because these cabins are placed outdoors, they must endure the harshest elements. We offer cabins manufactured from heavy-duty Mild Steel (MS Sheet) or Fiber Reinforced Plastic (FRP), guaranteeing zero rust, termite proofing, and decades of structural integrity.
- 360-Degree Panoramic Visibility
- Rust-Proof MS & FRP Options
- High Impact & Vandal Resistant

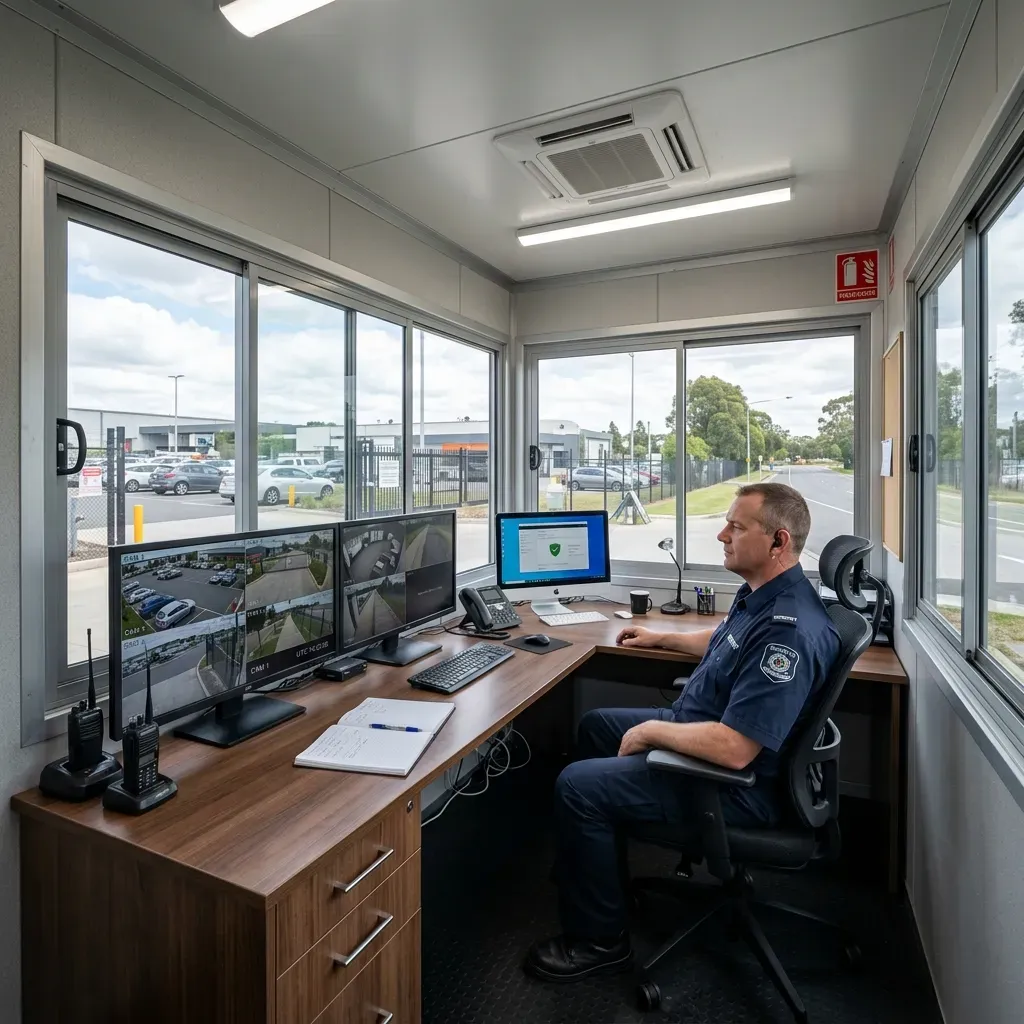

Ensuring Guard Comfort & Efficiency
A security guard's alertness directly depends on their working conditions. Operating 24/7 in extreme UP heat or cold requires a thermally regulated environment. Our premium cabins feature **PUF or Glass Wool insulation** within the walls and roof, acting as a powerful thermal barrier.
Each unit is delivered "plug-and-play" with pre-installed electrical boards, lighting, fan hooks, and provisions for exhaust fans or split ACs. This ensures a comfortable, fatigue-free environment for your security personnel.
Compact, Portable & Customizable
Space is often limited at entry gates. We manufacture cabins in various compact footprints starting from standard 4x4 ft up to larger 10x8 ft rooms that can accommodate multiple guards and monitoring equipment.
These cabins are highly portable. Equipped with sturdy roof hooks or forklift pockets at the base, they can be easily lifted and relocated to a new gate or site within minutes, making them a highly flexible asset for construction companies and event organizers.
Design Variations
Standard MS Cabins
Corrugated or plain Mild Steel sheets, painted with epoxy for high durability and cost-effectiveness.
Insulated PUF Cabins
Sandwich panels used for superior temperature control in extreme weather locations.
FRP (Fiber) Cabins
Lightweight, 100% rust-proof, and seamless molded designs ideal for coastal or high-rainfall areas.
Applications & Deployments
Residential Societies
Aesthetically pleasing gatehouses equipped with sliding transaction windows for visitor registers.
Factory & Industrial Gates
Heavy-duty, high-clearance cabins designed to monitor heavy truck movement and weighbridges.

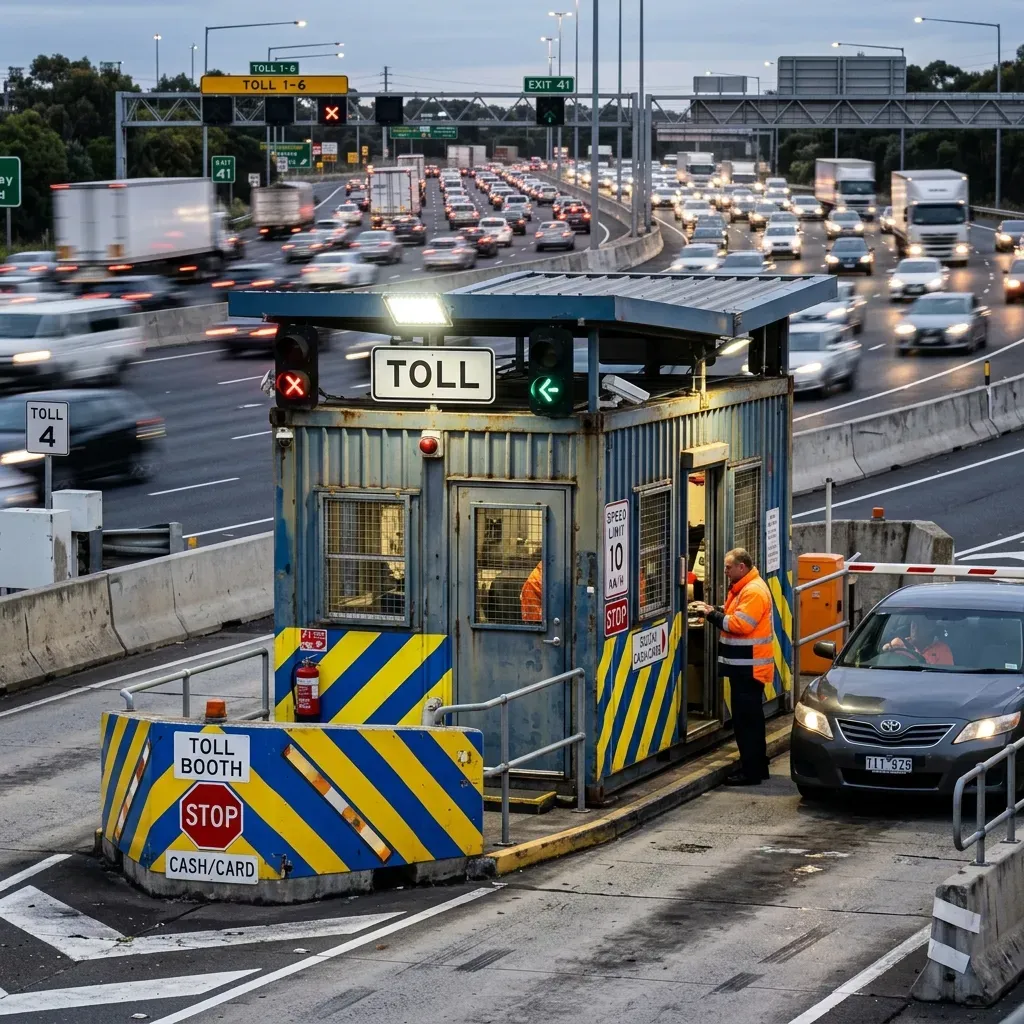

Toll Plazas & Checkpoints
Compact, bullet-resistant (optional) kiosks designed for rapid transaction handling on highways.
Event Ticketing Booths
Easily transportable cabins with secure cash-handling windows for exhibitions and concerts.
Technical Deep-Dive
Standard Dimensions
Available in 4x4 ft, 4x6 ft, 6x6 ft, and custom sizes. Standard clear height of 7 to 8 feet.
Floor Construction
Heavy MS tubular frame base covered with 18mm Bison Board and finished with anti-skid PVC vinyl flooring.
Wall Materials
Choice between 18 SWG MS Sheet, 40-50mm PUF Panels, or high-grade seamless FRP.
Window Specifications
Powder-coated aluminum sliding windows with 4mm/5mm clear glass and protective MS safety grills.
Roof Design
Sloped or curved roof profiles with rain gutters to ensure zero water stagnation during heavy monsoons.
Electrical Setup
Concealed PVC conduits with 1 Light Point, 1 Fan Point, 1 5A Socket, and an external main connection box.
Advanced Security Integrations

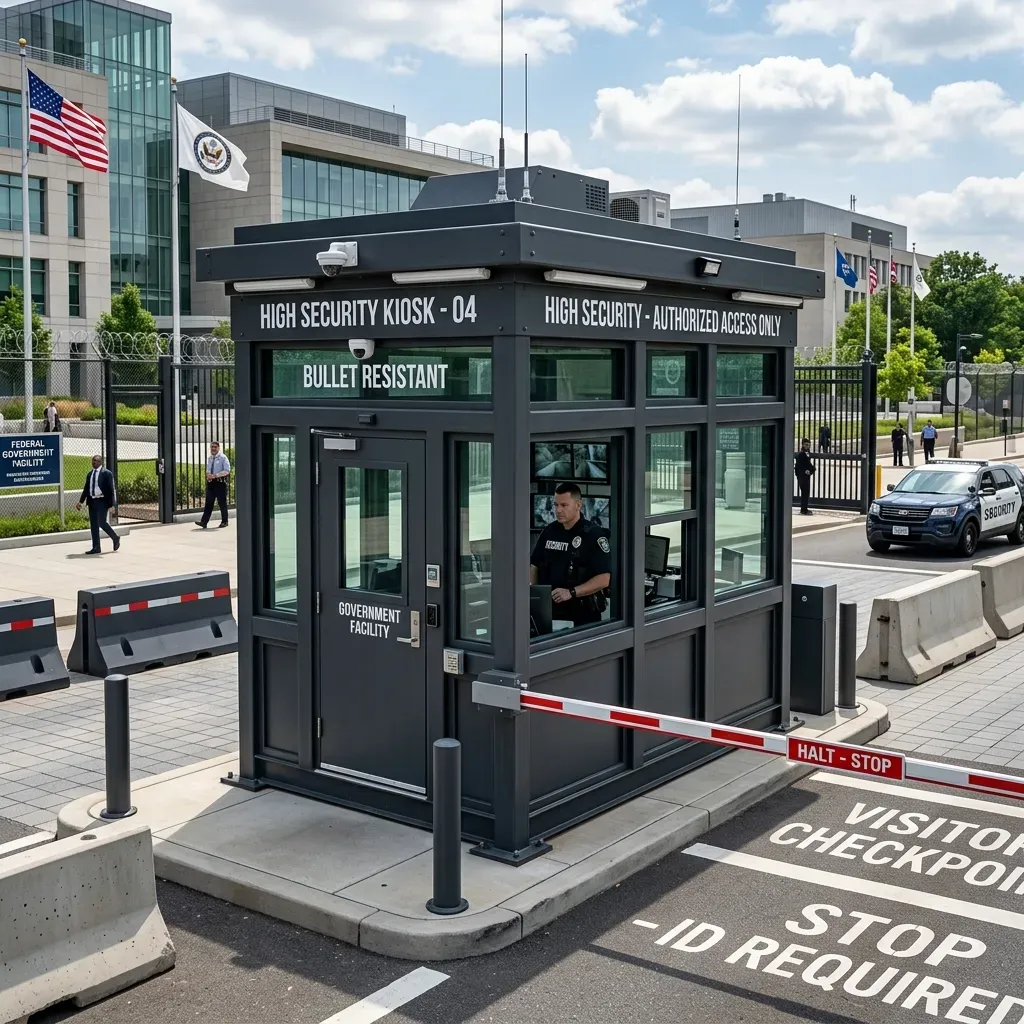

Fortified For Critical Assets
For high-profile commercial and government sites, a standard cabin is not enough. We manufacture highly fortified security kiosks designed to withstand extreme impacts and provide secure monitoring environments.
- CCTV & PA Systems: Pre-wired mounts for 360-degree cameras.
- Access Control: Integrated mounts for biometric & RFID scanners.
- Bullet-Resistant Glass: Optional heavy-duty thick glass for critical zones.
MS Steel vs FRP Cabins
Mild Steel (MS) Cabins
The industry standard. Highly robust and impact-resistant. Best for heavy construction sites and factories where physical damage risk is high.
- Extremely strong & rigid
- Highly cost-effective
- Requires periodic painting to prevent rust
FRP (Fiber) Cabins
The premium choice for zero-maintenance. Made from molded fiberglass, these cabins are perfect for coastal areas or high-rainfall zones.
- 100% Rust & Termite Proof
- Zero maintenance over decades
- Seamless aesthetic finish
